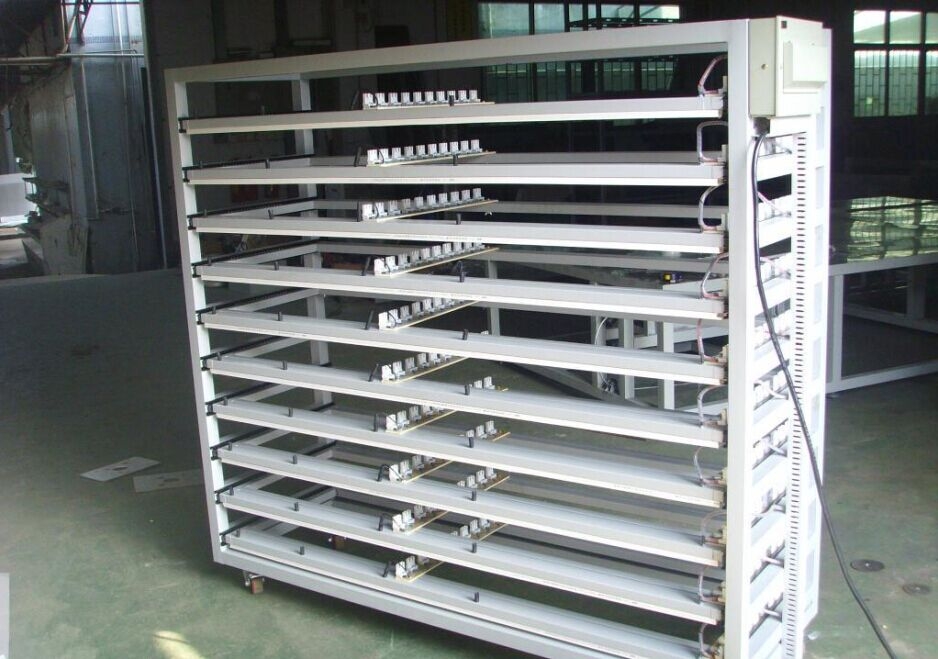

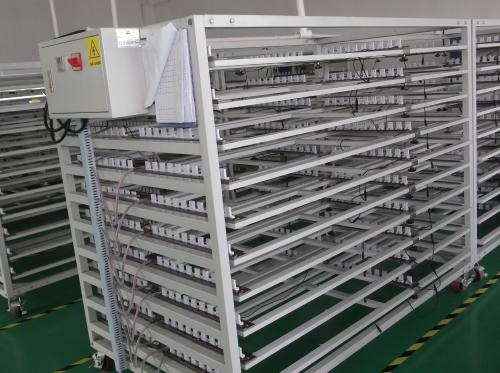

LED fluorescent tube aging rack equipment structure:

Trolley type and drawer type design;

Features of LED fluorescent tube aging rack:

This equipment is used in the aging rack of LED fluorescent lamps and adopts a trolley-style design. The trolley is equipped with an intelligent control system for intelligent control, and the central control operation is simple. Observe that energy-saving lamps have short circuits, exploded capacitors, blackheads, etc., through the practice of the high and low voltage areas of lamps. The use of beat circuit and analog lamps. Easy to operate.

1. Applicable product specifications: length less than 1500mm T8 tube; four specifications 600-900-1200-1500

2. Power: The total power 220V is less than 3KW; each layer is less than 300W; the total current is less than 15A, and the current for each layer is less than 3A;

3. Layer height: 200mm, total height 1600mm; 8 layers of tubes * 10 pieces = aging amount 80 pieces/set

4. Impact cycle: 0~24H adjustable; opening and closing time 0～60S adjustable; [equipped with intelligent aging cabinet]

5. External power supply: equipped with a three-core waterproof plug;

6. Turnover method: casters, single side with brake, two directions, two directions;

Guangshengde LED fluorescent tube aging frame material selection and production:

1. Bracket: adopt 40*40*1.5 iron profile;

2. Guide rail: 30*30*1.2 aluminum profile;

3. Install 20-inch stainless steel slide rail for convenient loading and unloading

4. Casters: adopt two diagonal installations with brakes; two diagonal installations without brakes;

5. Main wire: 4 square three-core cable;

6. Main power connector: three-core 32A waterproof plug.

7. Laminate wires: 1.5 square single-core color separation; red and black;

8. Control: set up a master circuit breaker, each 1P circuit breaker control: set a circuit breaker to control single and double conversion;
