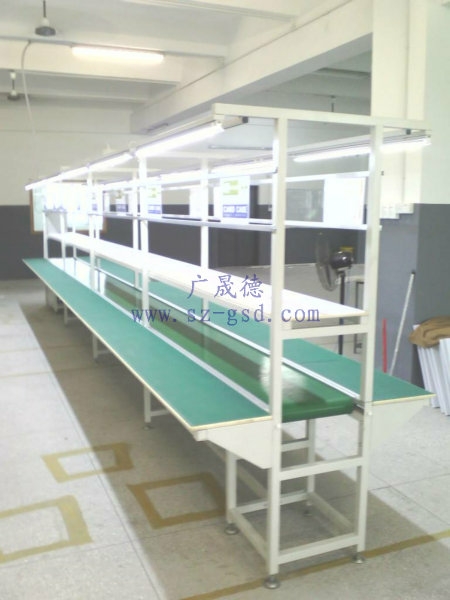

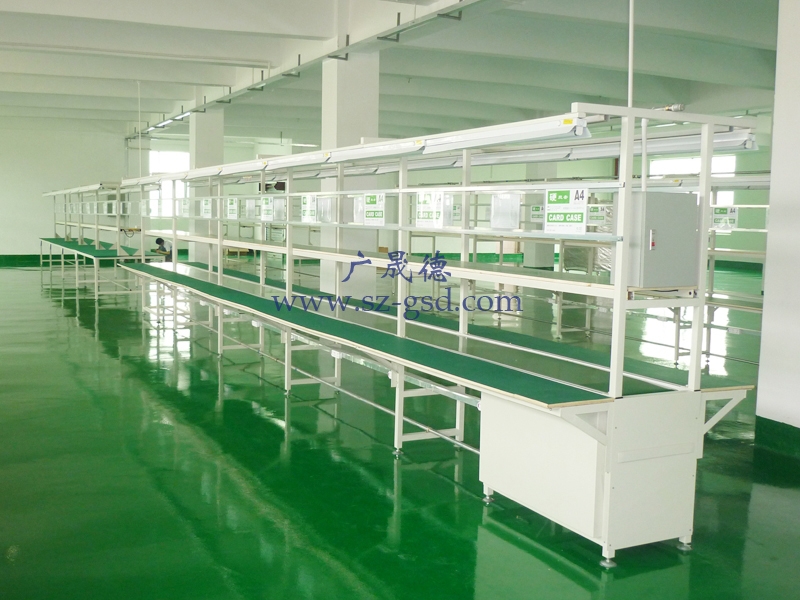

Guangshengde long workbench production line configuration drive system configuration

1. 60W / 1:50 tooth box, medium and large speed motor;

2. Speed: 0-6m/min, speed governor, safe and low noise;

3. The driving roller is 6 inches * 350, and the driven roller is 3 inches * 350.

The fuselage line structure of the Guangshengde long workbench production line

1. The support is made of 40*40 iron square pass, working surface height: 720±20mm;

2. Standard screw connection, multiple disassembly damage. Easy disassembly and assembly, stable and not deformed;

3. The pull-throughs on both sides of the middle guide rail of the line body are made of aluminum alloy material, assembled from 40*60 aluminum square passes, which are not easy to pollute electronic products;

4. Green Dutch δ2*350PVC transport belt, seamed and connected, the workbench is made of anti-static rubber, the Guangshengde brand can be printed within 2 years;

5. The bottom of the conveyor belt is supported by a galvanized pallet, and each meter has a φ25*350 galvanized pallet to support it, which is not deformed and ensures stable transportation;

7. The assembling power system adopts pvc wire trough, 2.5mm2 power cord, and each station is equipped with multi-hole square socket, 1 per 1 meter;

8. Long workbench specification: 350mm, the table is made of δ16mm wood board, the surface is pasted with green anti-static rubber, and the semi-circular wood is edging;

9. The craft guide bookshelf is made of H-shaped aluminum, and each station is installed with A4 craft card sets;

10. Install two special air-bearing aluminum materials on the top of the lamp holder, and each station is equipped with a wind-batch car;

11. The width of the instrument panel is 350mm, the table top is made of δ16mm wood board, the surface is pasted with white fireproof board, and the semi-circular wood is wrapped. Lighting design of LED fluorescent lamp packaging production line

28W/T5 energy-saving lamp with cover, each lamp comes with a small control switch. Use a photometer to test the brightness of 369 Lux in the same environment. The two sides are filled continuously, and the lamp pass material is 25*50 iron flat pass.

Example: A 10-meter belt line (compared to fluorescent lamps), 18 lamps should be installed on both sides, calculated according to the annual power consumption of the 22-day, 8-hour work system (18 lamps * 28 watts * 8 hours * 22 days * 12 Month = 1064.5 kilowatts) energy saving, power saving, can save 456 kWh, an average of 25.3 kWh per lamp per year
