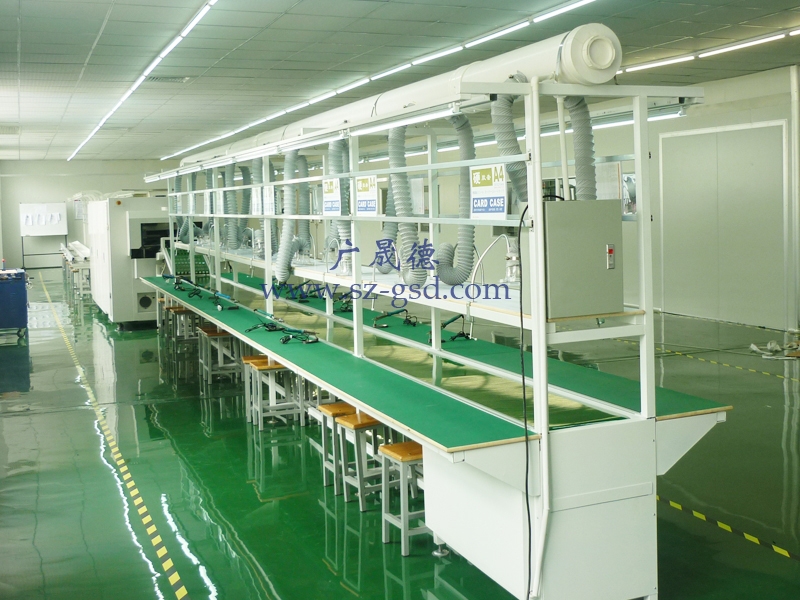

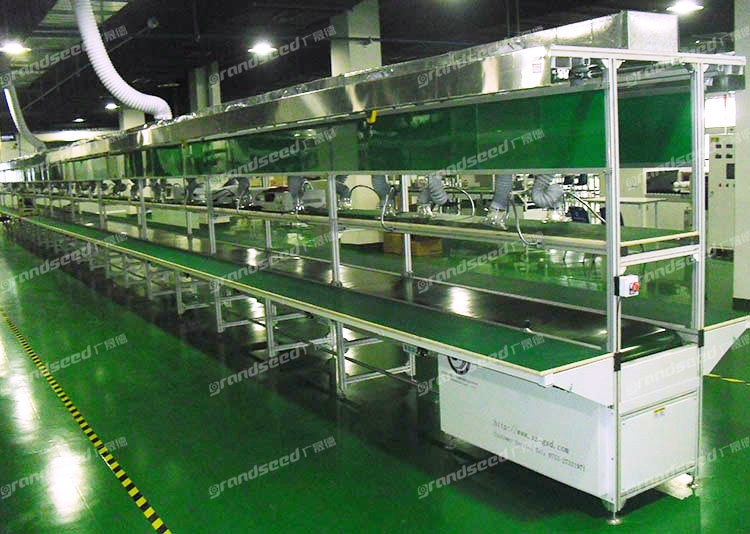

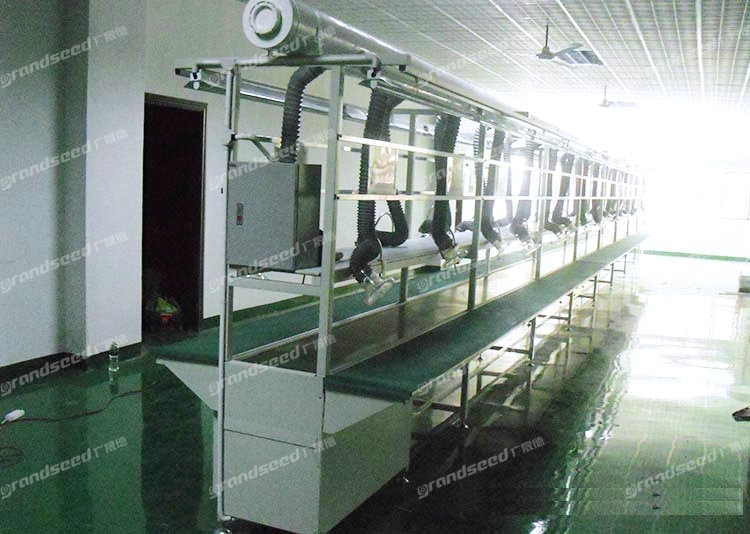

The back welding line of the long workbench is mainly used for the repair production line of the circuit board after wave welding and the circuit board welding production line.

1. The configuration of the wire-bonding drive system behind the long workbench

1. 2HP Shuangjianglong brand motor, gearbox: Qingfeng brand 80 tooth box; the head and tail are made of square steel, stable, and the motor and motor are not easy to loosen;

2. Speed: 0-6m/min, 2HP frequency converter speed regulation, using frequency conversion speed regulation, safe and low noise;

3. The driving roller is 6 inches * 400, and the driven roller is 3 inches * 400.

Second, the wire body structure of the rear welding line of the long workbench

1. The support is made of 40*40 iron square pass, working surface height: 720±20mm;

2. Standard screw connection, multiple disassembly damage. Easy disassembly and assembly, stable and not deformed;

3. The pull-throughs on both sides of the middle guide rail of the line body are made of aluminum alloy material, assembled from 40*60 aluminum square passes, which are not easy to pollute electronic products;

4. Green Holland produced δ2*400PVC transport belt, seamed and connected, the workbench is made of anti-static rubber, the Guangshengde brand can be tested with a meter within 2 years;

5. The bottom of the conveyor belt is supported by a galvanized pallet, and each meter has a φ25*400 galvanized pallet to support it, which is not deformed and ensures stable transportation;

6. The assembling power system adopts galvanized wire trough, 2.5mm2 power cord, and installs multi-hole square sockets per station, 1 per 1 meter;

7. Long workbench specification: 350mm, the table is made of δ16mm wood board, the surface is pasted with green anti-static rubber, semi-circular wood edging;

8. The craft guide bookshelf is made of H-shaped aluminum, and each station is installed with A4 craft card sets;

9. Install a ￠200 PVC exhaust pipe on the top of the lamp stand, and install an exhaust port for each station;

10. The width of the instrument panel is 400mm, the table top is made of δ16mm wooden board, the surface is pasted with white fireproof board, and the semi-circular wood is edging;

11. Install two special air-batch aluminum materials on the top of the lamp holder, and each station is equipped with a wind-batch car.

Third, the lighting design of the welding line behind the long workbench of Guangshengde

28W/T5 energy-saving lamp with cover, each lamp comes with a small control switch. Use a photometer to test the brightness of 369 Lux in the same environment. The two sides are filled continuously, and the lamp pass material is 25*50 iron flat pass.

Example: A 20-meter belt line (compared to fluorescent lamps), 36 lamps should be installed on both sides, calculated according to the annual power consumption of the 22-day, 8-hour work system (36 lamps * 28 watts * 8 hours * 22 days * 12 Month = 2129 kilowatts) energy saving, power saving, can save 456 kWh, an average of 25.3 kWh per lamp per year.
